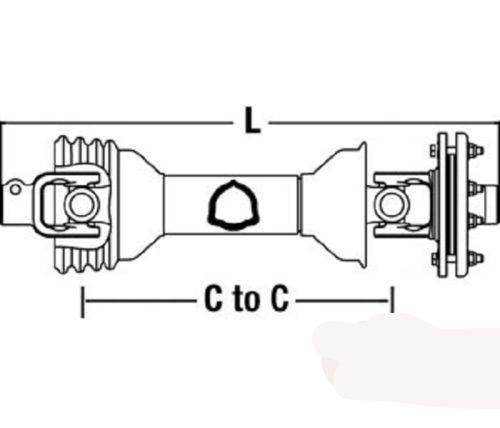

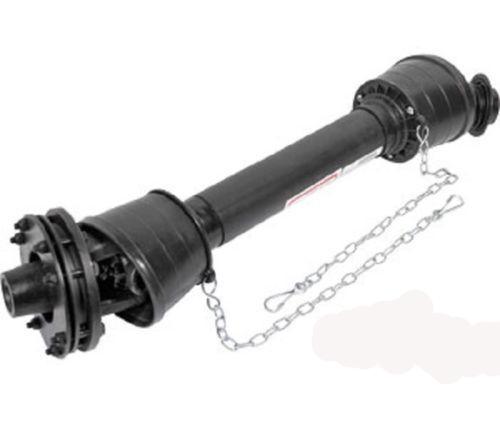

| Rotary tiller driveline with friction disc clutch. Driveline rated as a category 3 (35 hp), 100 series. Driveline C-to-C length: 20" (510 mm), Max C-to-C length: 29.375" (746 mm), Total collapsed length: 29.37" (746 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline 6" 2 disc clutch. Fits King Kutter Rotary Tillers. |
| • It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out. |
| size 4 |
| min c-to-c length 510 mm/ 20" |
| max c-to-c length 750 mm/ 29.375" |
| total collapsed length 746 mm/ 29.37" |
| tractor 1 3/8" -6 |
| implement 1 3/8" - 6 spl. 2 disc clutch |
| clutch diameter 6" |
| Series 100 |
| Category 3 (35HP) |
