Features:

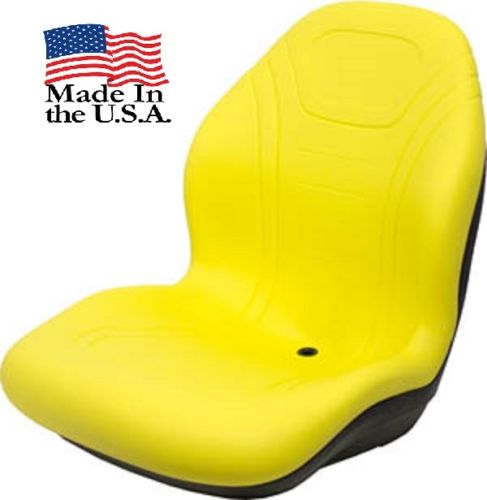

- Milsco XB200 Seat
- Durable vinyl covering
- Rugged blow molded plastic bucket frame is corrosion resistant
- Ergonomical foam cushion for operator comfort
- Vacuum formed vinyl cover
- Waterproof with central drain hole
- Multiple mounting patterns
- Uses standard 5/16 18UNC bolts
Mounting patterns include (W x D): 8" x 11.5" and 11.25" x 11.5"
Please Note: Will only fit listed Skid Steer models if the original seat did NOT have a suspension.
Re-use original hinge bracket on John Deere® Compact Utility Tractors. JD Turf Utility Seat Bracket (PN: 6003) is required on certain John Deere® lawn mowers for correct fit, or you can order PN: 6801 that comes with the JD Turf Utility Seat Bracket.
This seat takes the Twist in Mount Operator Presence Switch. Please verify that your original operator presence switch is twist in mount. If it is not, you will need to buy the operator presence switch separately

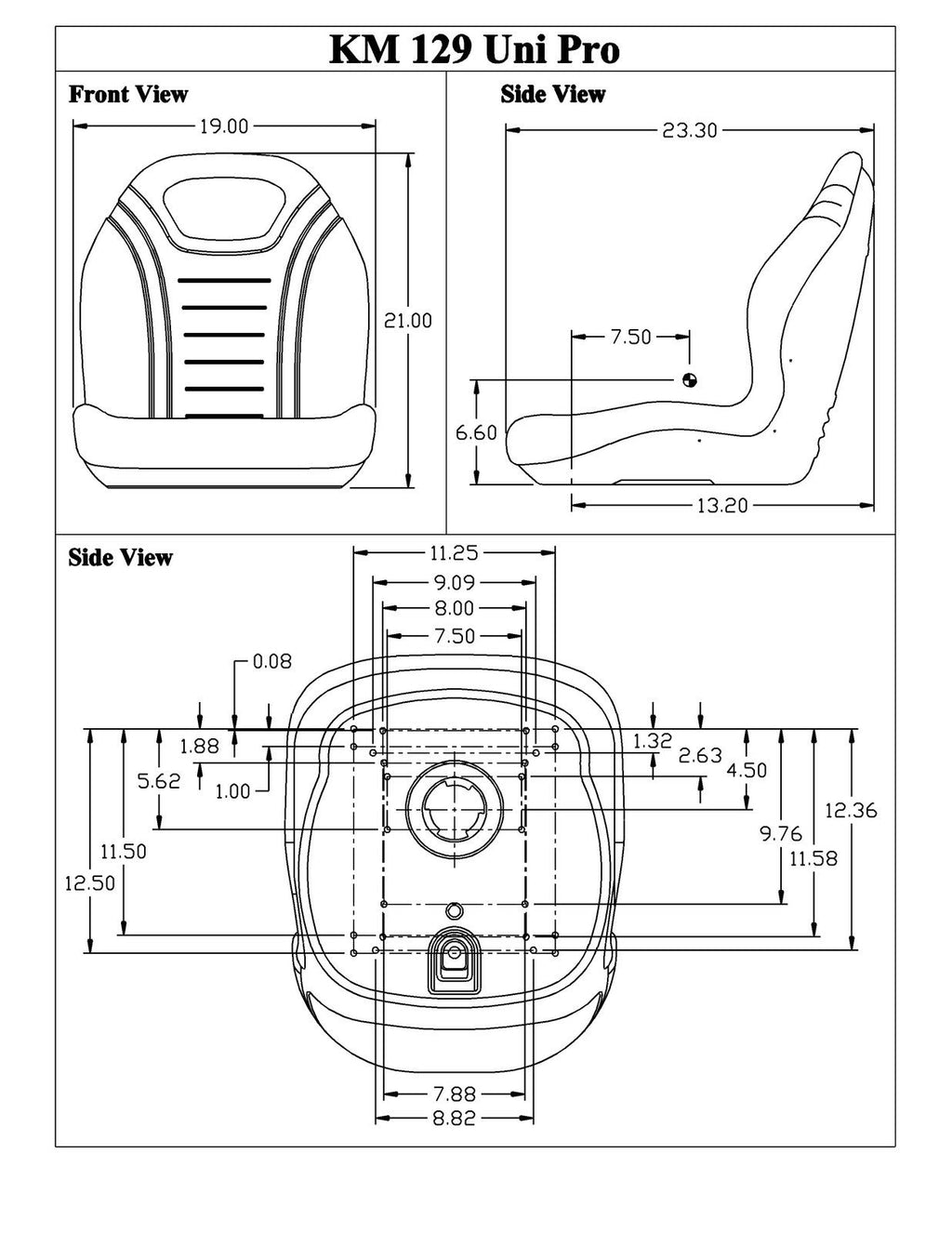

Match bolt holes and dimension to the pattern diagram before purchasing to be sure it fits your application.
Multiple Applications for Agriculture, Industrial, Lawn & Garden Tractor, Skidsteer, Tractor and Turf Equipment. Ideal for AGCO®, Allis Chalmers®, Ariens®, Cub Cadet®, Dixon®, Exmark®, Ferris®, Gravely®, Grazer®, Hustler®, Jacobsen®, John Deere®, Scag®, Simplicity®, Steiner® and Toro® Lawn Mowers, Bobcat® Mini Excavators and Skidsteers, Case® Backhoe Loaders, Skidsteers and Trenchers, Case IH® Tractors, Caterpillar® Asphalt Compactors, Rollers/Compactors, Skidsteer and Telehandler, Dresser® Scraper, Gehl® Skidsteers, Gradall® Telehandler, JCB® Forklifts and Telehandlers, John Deere® Compact Utility Tractors, Excavators, Gators and Skidsteers, Lay-Mor® Sweepers, Montana® Tractor, New Holland® Tractor and Backhoe Loaders, Skytrak® Telehandlers, and Vermeer® Trencher.
Replaces John Deere® Compact Tractor Part Numbers: LVA10029, LVA12909, LVA14067 Replaces John Deere® Part Numbers: AM107802, AM129772, AM136400, AM141482, AM142095, TCA13830, 4478301, AT315073, AT327445, AT327447, AT344971, AT347476, AT355008, AT361224, GG420-32536, GG420-33358, GG420-34303, KV21099, KV24167, MG861683, MG9601473
Notes:
John Deere Skidsteers & Caterpillar Skidsteer 226: will only fit the model listed if the original seat did NOT have a suspension
John Deere Models 2305, 2320, 2520 and 2720 (Compact Utility) Tractor must also order new seat switch, PN: 81210
7103 7104
