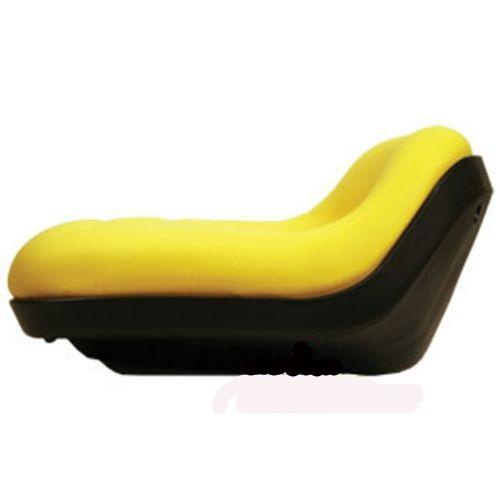

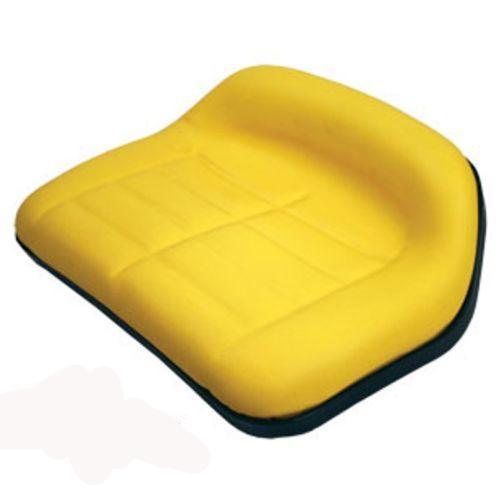

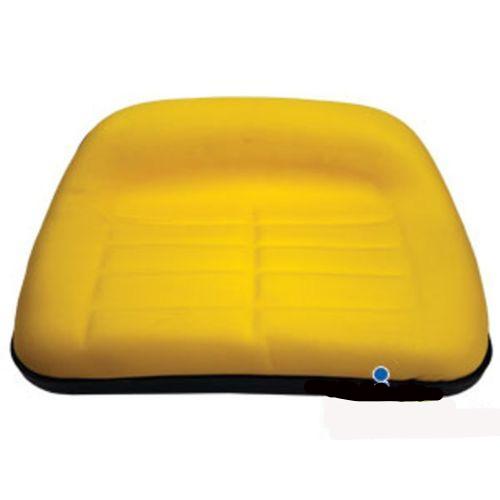

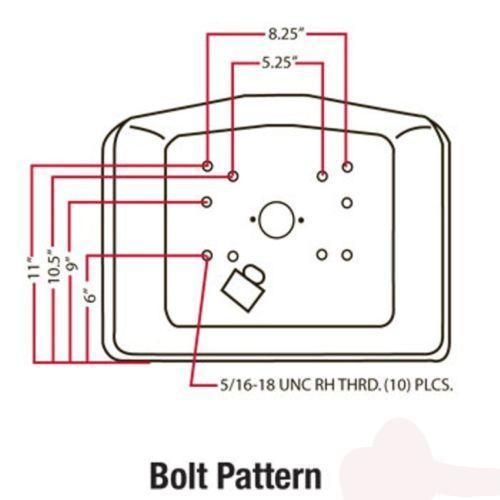

New low back seat for John Deere mowers. Please see out bolt pattern picture to check on your specific model.
New replacement seat for John Deere Riding Mower models: F150, F525, RX63, RX73, RX75, RX95, SX75, SX95, 108, 111, 111H, 112H, 112L, 116, 116H, 130, 160, 165, 170, 175
• Does not have provision for operators presence switch.
Seat Mounting Hardware
The OEM applications that used this seat might have used either SAE or Metric mounting bolts. This replacement seat uses only SAE bolts. Do not reuse original Metric bolts. Damage to the threaded inserts will occur.
you will need to determine exactly what size bolts your specific seat and application will need. The threads will either be 5/16-18, or 3/8-16 and some seats could use either depending on which mounting bolt pattern used.
